ЛИНИЯ ОКУТЫВАНИЯ
HYMMEN + KONTRA

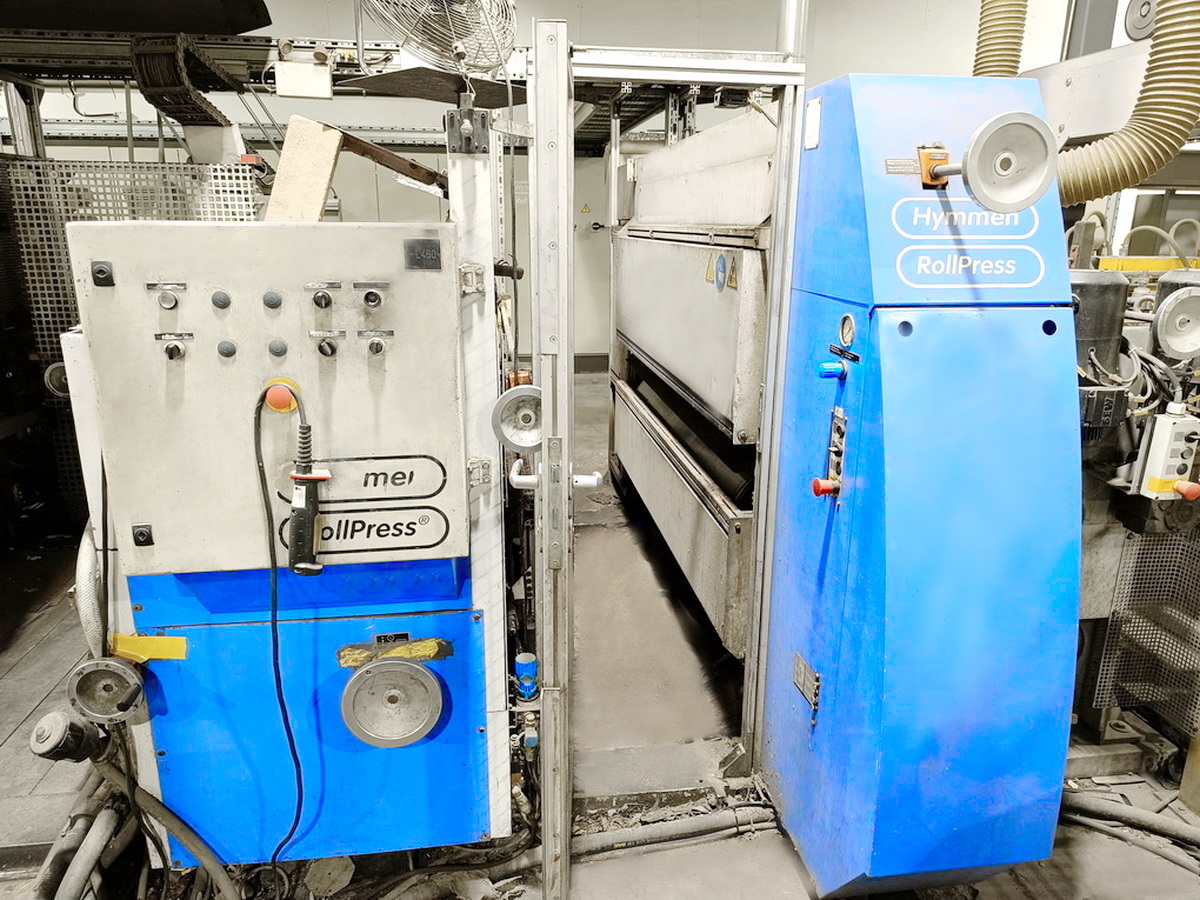

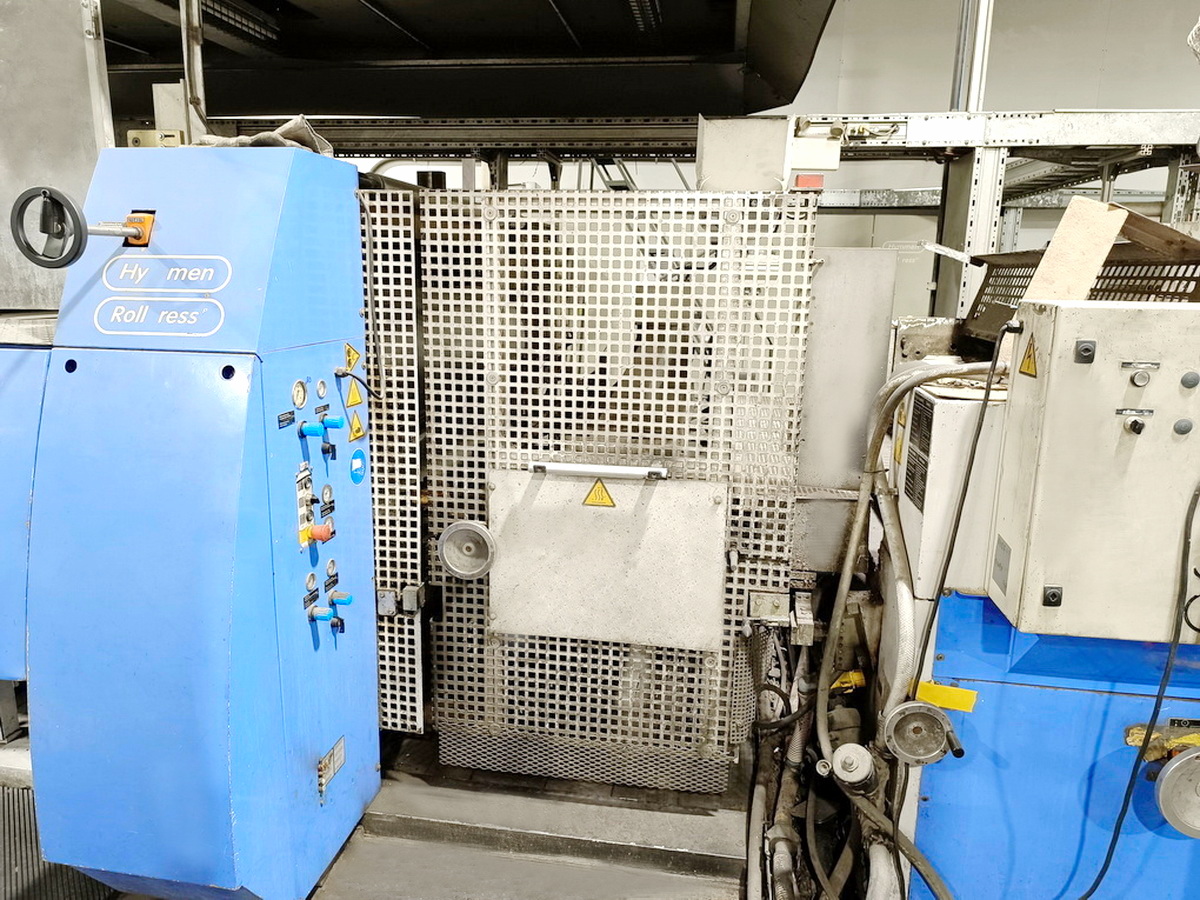

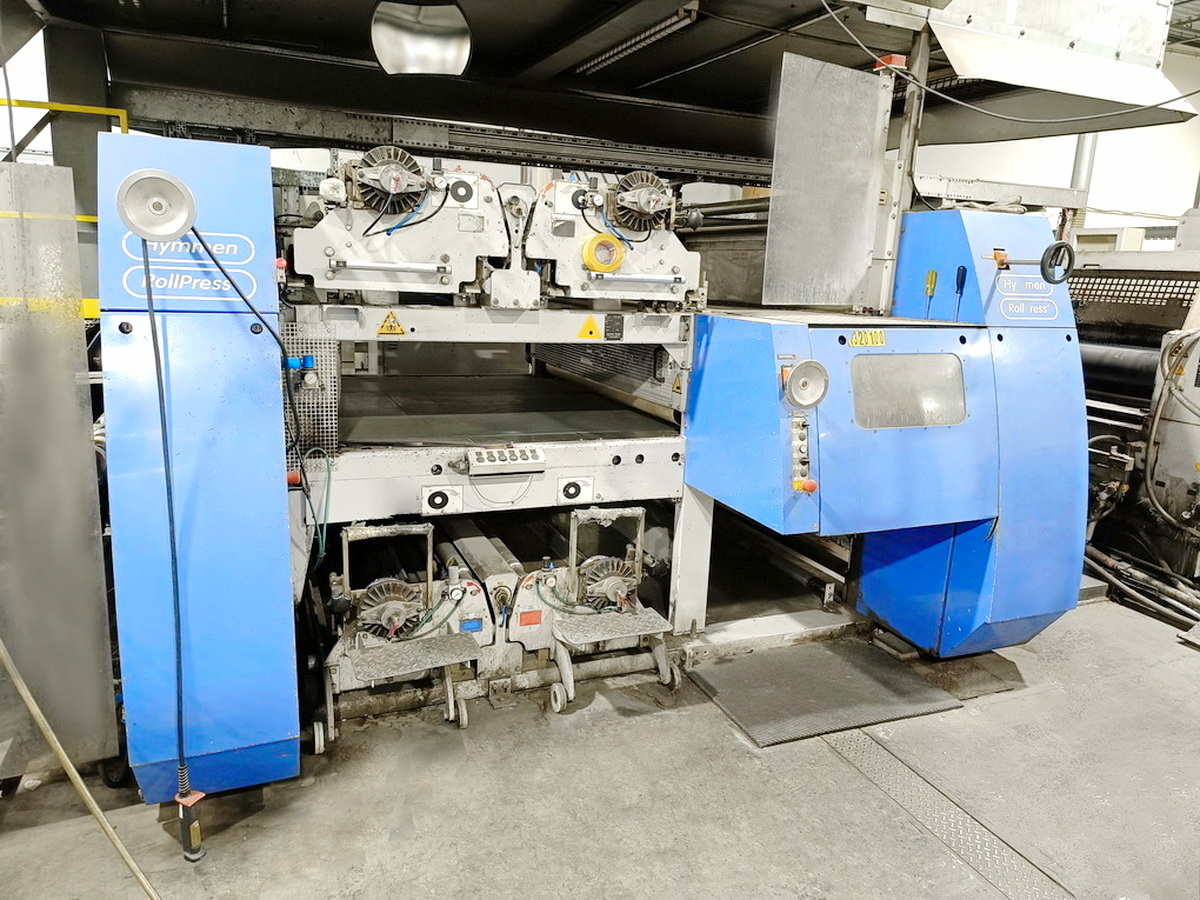

RollPress
Техническое описание:
LAMINATING LINE for panels (particleboards, MDF, HDF)
Minimum/maximum panel dimensions: mm 600-1550 (width) x mm 1854-3660 (length)
Minimum/maximum panel thickness: PB/MDF mm 8 - 44 (standard mm 16-19-22) // HDF mm 2,5 - 8
Adjustable working speed: m/min 8 - 29
Minimum/maximum working cycle (Feeder and Stacker): 6 cycles/min - 10 cycles/min

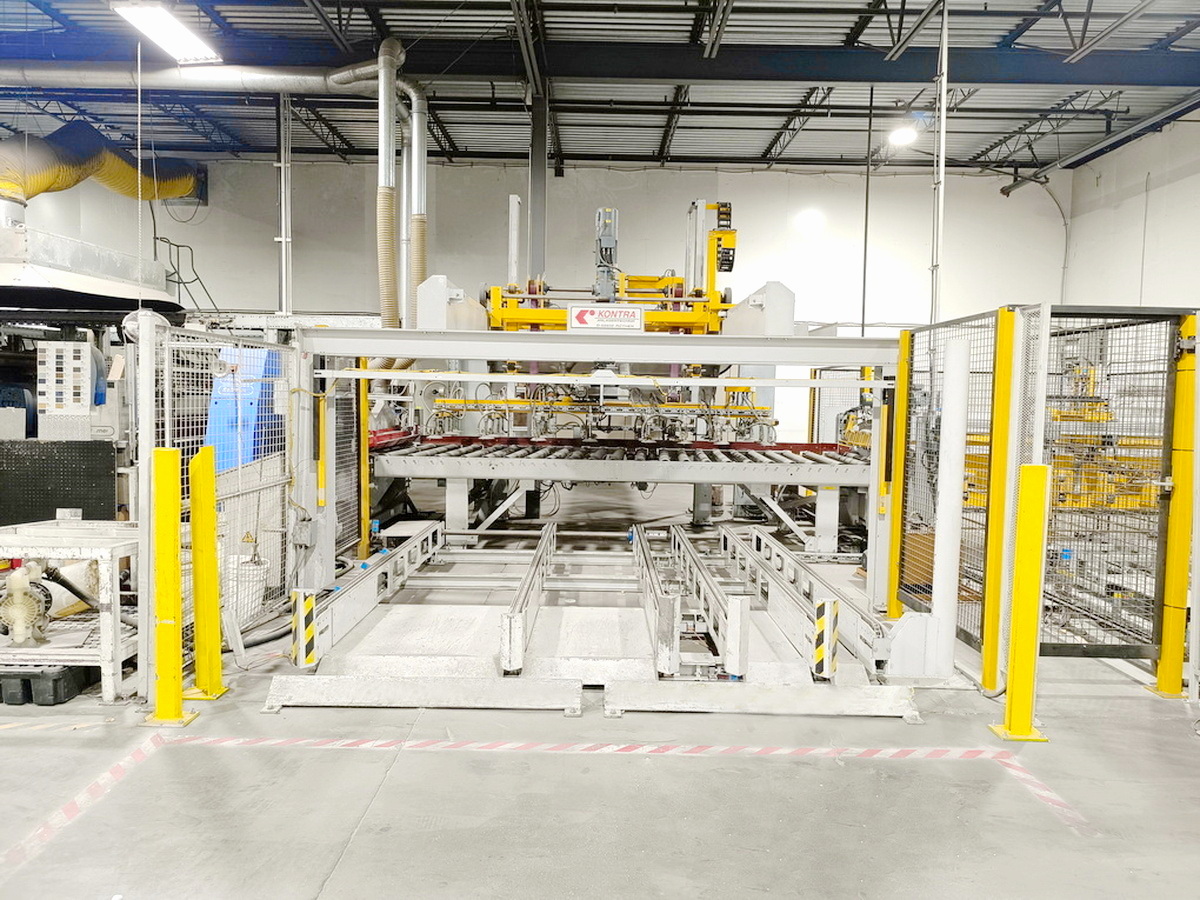

01) "KONTRA" Loading station (with stack chain conveyor, 2 Lifting platforms and Feeding station)

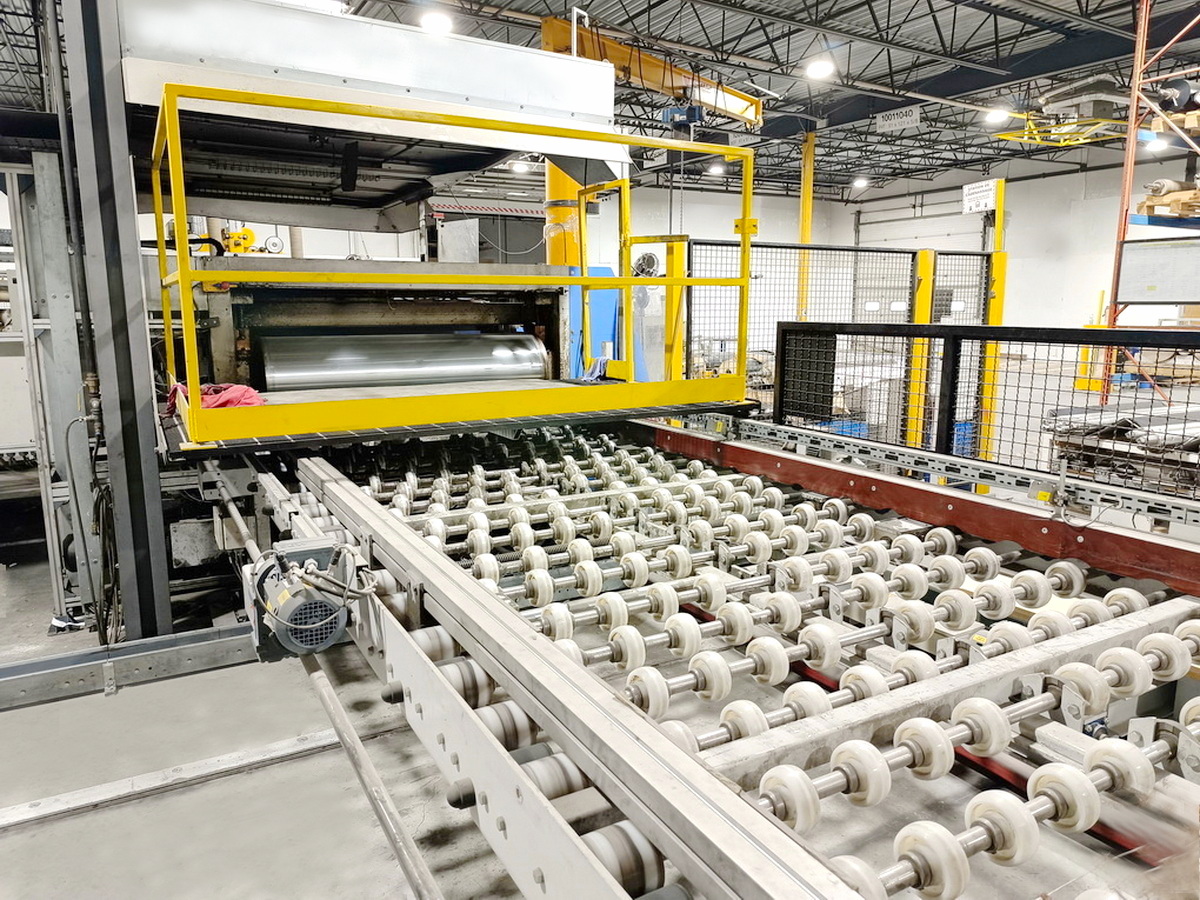

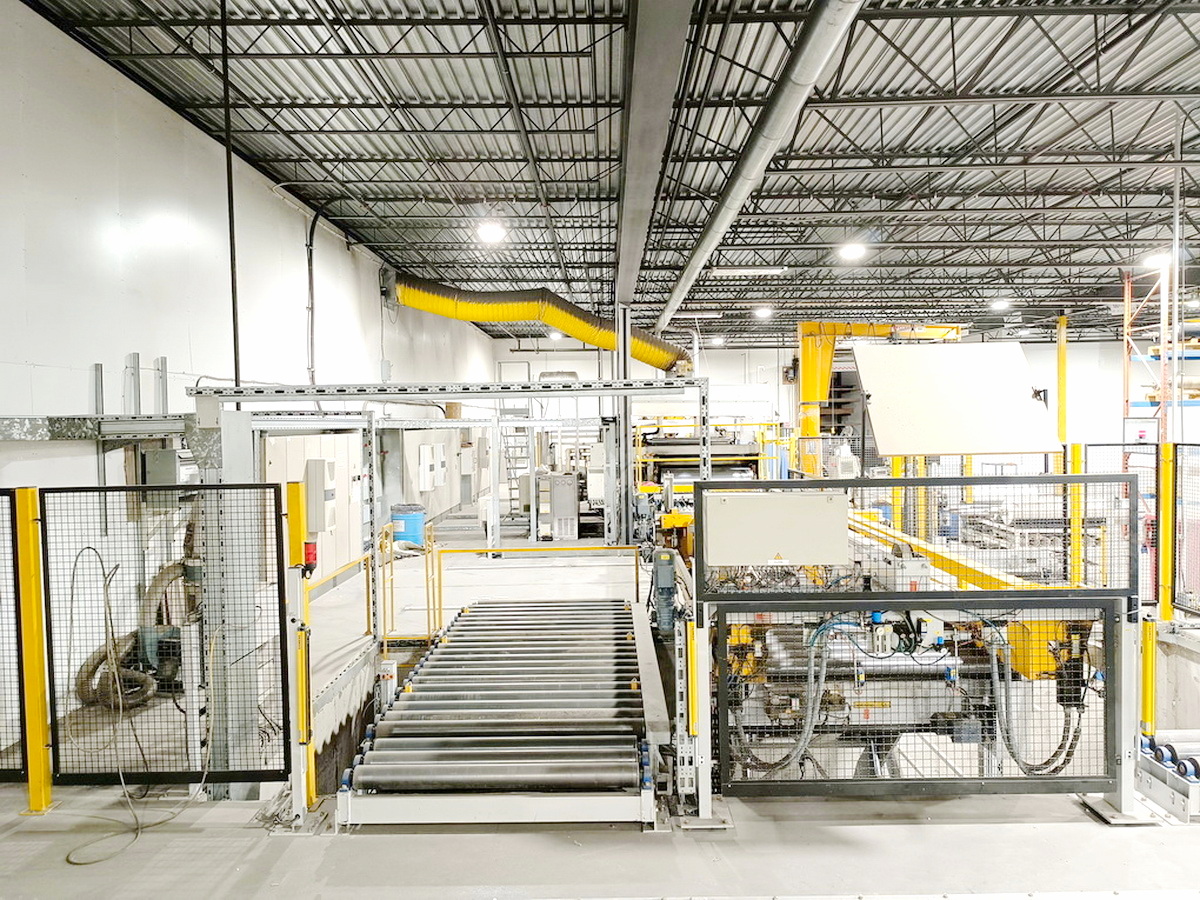

02) "KONTRA" Roller conveyor with length guide rail
03) "KONTRA" 1 Vacuum transporter + 1 Stack chain conveyor for protection boards
04) HYMMEN LAMINATING SYSTEM
a. "HYMMEN" Mod. FRB (Cleaning Machine)
b. "HYMMEN" Mod. GLK-V (Smoothing Calender to uniform the workpieces surface)
c. "HYMMEN" Mod. TLA (Glue spreading machine)
d. "HYMMEN" Mod. TRC (Conveyor)
e. "HYMMEN" Mod. ADZ (Evaporation / Flashing-off Zone)
f. "HYMMEN" Mod. KKL (Laminating Calender)
g. "HYMMEN" Mod. DSS (Double-belt continous press)
h. "HYMMEN" Mod. PWG (Pressing conveyoring rollers)
i. "HYMMEN" Mod. FAA (Foil Unwinding Station)
j. "HYMMEN" Mod. GLK (Final Calender)
05) "KONTRA" 1 Speed-up roller conveyor with length guide rails on both sides and pusher

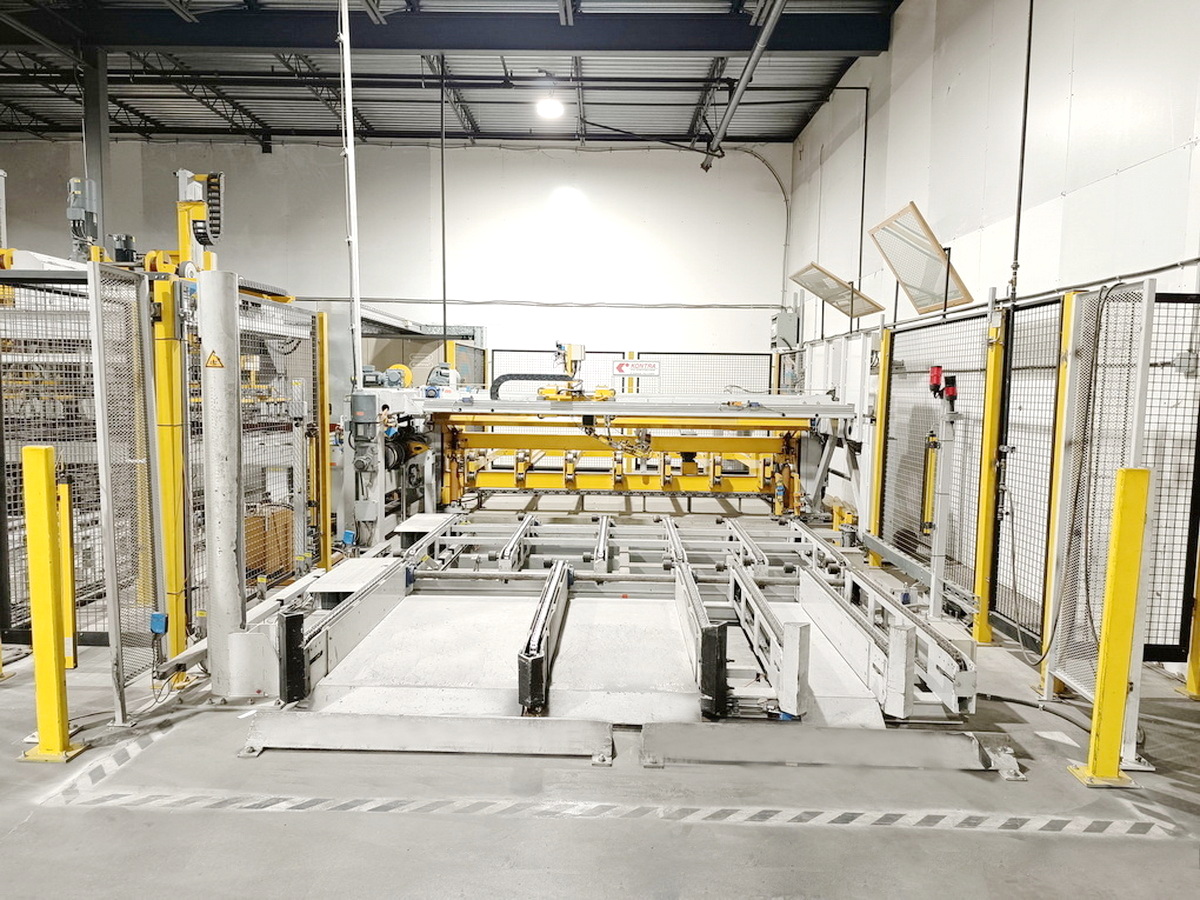

06) "KONTRA" Unloading station
07) "KONTRA" 1 Protection board magazine
