ЦИРКУЛЯРНАЯ ПИЛА

МАРКА:

TECNO LOGICA (for BIESSE)

МОДЕЛЬ:

Splitter TL.15

Технические характеристики

Паспорт PDF

Получить предложение

Техническое описание:

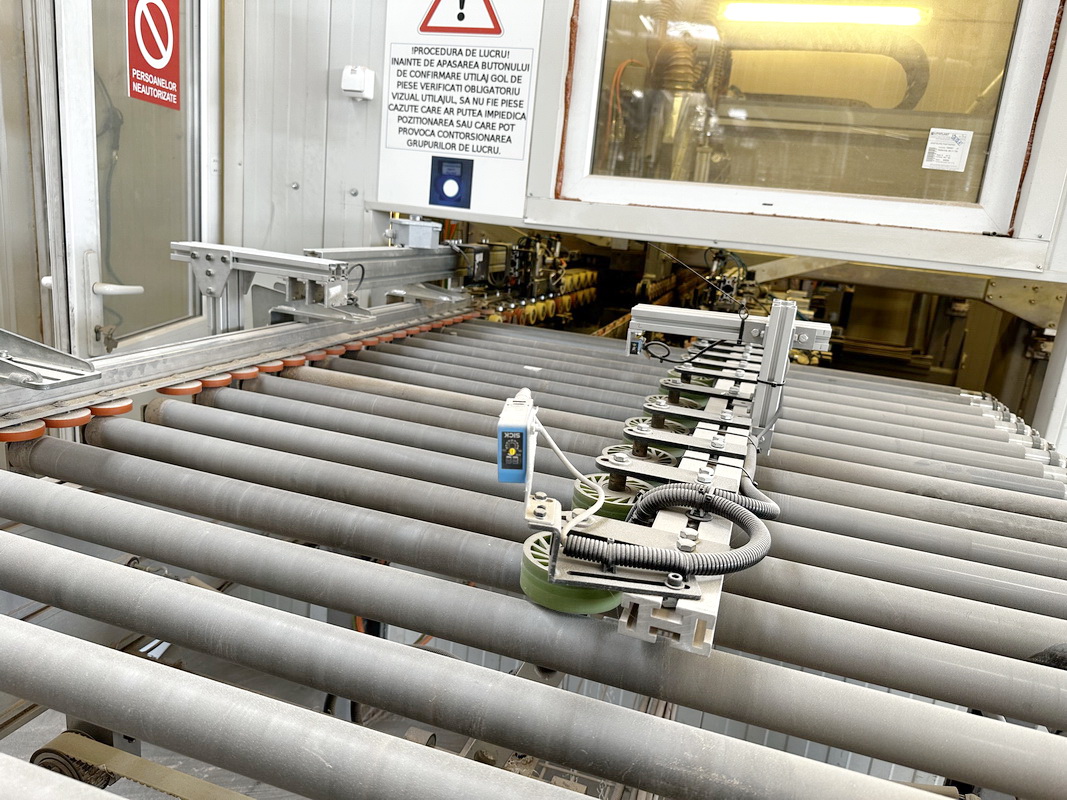

Splitting - Grooving Machine (used to groove and/or split in two parts one unique panel)

- Minimum length of the workpiece: mm 250 (ca.)
- Maximum length of the workpiece: mm 2700 (ca.)

- Minimum width of the workpiece: mm 124 (ca.)
- Maximum width of the workpiece: mm 1200 (ca.)

- Thickness (min./max) of the workpiece: mm 10 / 60 (ca.)

- Max feeding speed: m/min 50 (ca.)
- Total installed power Kw 82

Along with the following groups:
POS. 1 Lower scoring blade unit (Rotax electro-spindle Kw 5) max. blade diameter mm 250 (ca.)
POS. 2 Upper scoring blade unit (Rotax electro-spindle Kw 5) max. blade diameter mm 250 (ca.)
POS. 3 Lower scoring blade unit (Rotax electro-spindle Kw 5) max. blade diameter mm 250 (ca.)
POS. 4 Upper scoring blade unit (Rotax electro-spindle Kw 5) max. blade diameter mm 250 (ca.)

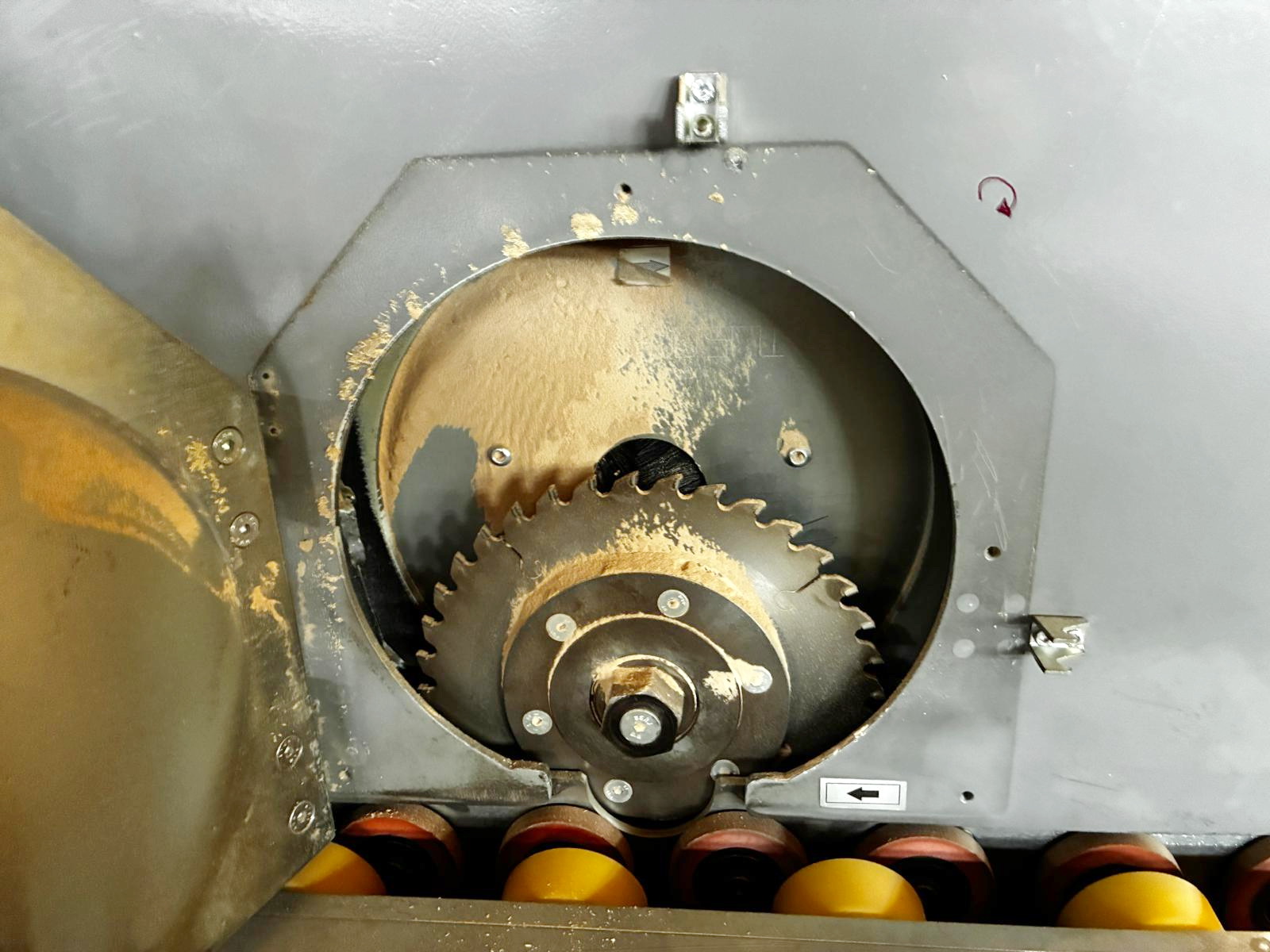

POS. 5 Lower main blade (sawing) unit (Rotax electro-spindle Kw 11) max. diameter mm 450 (ca.)
POS. 6 Upper main blade (sawing) unit (Rotax electro-spindle Kw 11) max. diameter mm 450 (ca.)

OPTIONAL: soundproof and safety enclosure (cabine)
